| Product Code |
Description |
| VLPAS4 |
VooDoo Lab 2.5mm Straight Barrel & 4 - Pin DIN 18" |
|
4-pin DIN GCX Cable
Use a Pedal Power AC and this 4-Pin DIN connector cable to power the Voodoo Lab GCX Audio Switcher or System Mix Plus.
Power Supply Connector: 2.5mm Straight Barrel Plug
Pedal Connector: 4-pin DIN Connector
Length: 18 in / 46 cm
|
| VLPIPK |
Voodoo Lab Cable Pack for Pedal Power Iso 5 |
|
Pedal Power ISO-5 Standard Replacement Cable Pack
Seven (7) of the most commonly used cables with the Pedal Power ISO-5.
Part # VLPPBAR-R - Four cables with 2.1mm right angle barrel center negative plugs - 18''/46 cm
Part # VLPPBAR-R24 - One cable with 2.1mm straight & right angle barrel center negative plugs - 24''/61 cm
Part # VLPPL6-R - One cable with 2.1 mm right angle barrel plug and a 2.5mm right angle barrel center positive plug - 18''/46 cm
Part # VLPPMIN-R - One cable with a 3.5mm right angle mini tip positive plug and a 2.1 mm right angel barrel plug - 18''/46 cm
|
| VLPP36-R |
Voodoo Lab 2.1mm Right Angle Cable no end |
|
2.1mm Cable With No End Plug (right-angle)
This cable is bare on the end and has one right-angle 2.1mm plug to connect to the Pedal Power.
Use this to make your own longer length or custom cables!
Approx 90 cm long.
|
| VLPPABAR |
Voodoo Lab 2.5mm x 2.5mm Dual 'Red' Barrel (PPAC Only) |
|
PPAC Only - 2.5mm x 2.5mm Dual “Red” Barrel (straight)
Designed for use with the Pedal Power AC only, this cables powers units like the Digitech Whammy,
Line 6 Digital Modelers (DL4, MM4, FM4, DM4, and AM4), and the Mesa-Boogie Bottle Rocket and V-Twin.
Also powers the Digital Music Corp/Voodoo Lab Ground Control, Ground Control Pro, and Pedal Switcher.
(Please note that the Digitech Whammy can only be powered by this cable and a Pedal Power AC.
The Pedal Power 2 Plus is DC only and will NOT power a Whammy regardless of what cable you use with it!)
Approx 52.5 cm long
|
| VLPPAP |
Voodoo Lab Current Doubler Adapter |
|

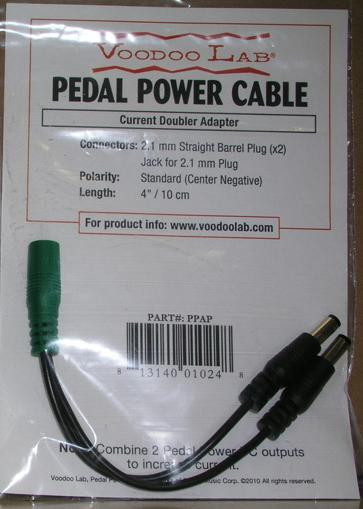

Current Doubler Adapter

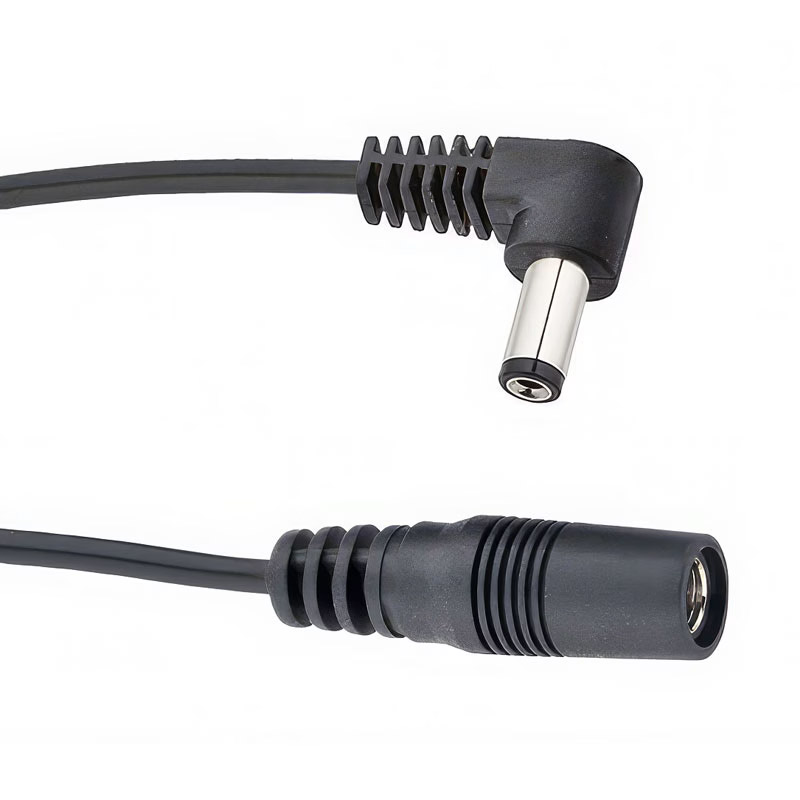

For pedals with higher power requirements, use this current doubling adapter with a 2.1mm jack to combine two Pedal Power outputs.
(Frequently used to combine outputs 5 & 6 on a Pedal Power 2+ to create a single 9V 500mA output.)
This adapter will accept any cable with a 2.1mm plug.
Power Supply Connector: 2.1mm Straight Barrel Plug (2)
Pedal Connector: Jack for 2.1mm Plug
Polarity: Standard (Center Negative)
Length: 4'' / 10 cm
|
| VLPPAV |
VooDoo Lab Output splitter Adapter: 2.1mm straight Barrel to two 2.1mm Female 4'' |
|
Output Splitter Adapter - Ground Lifted
This splitter adapter cable divides one Pedal Power output to two pedals. The splitter has two 2.1mm
jacks which will connect to any 2.1mm plug. The white stripe cable is ground lifted to eliminate ground loops.
Power Supply Connector: 2.1mm Straight Barrel Plug
Pedal Connector: Jack for 2.1mm Plug (2)
Polarity: Standard (Center Negative)
Length: 4'' / 10 cm
|
| VLPPAY |
VooDoo Lab Voltage Doubler Adapter : Two 2.1 mm Straight Barrels to 2.1 mm Female 4'' |
|
Voltage Doubler Adapter - 18V or 24V
For pedals with higher voltage requirements, use this voltage doubling adapter with a 2.1mm jack to combine two
Pedal Power outputs to make 18V or 24V. Ideal for MXR Flanger and Dime Distortion, Crybaby 535Q, various
Fulltone and Keeley products.This adapter will accept any cable with a 2.1mm plug.
Power Supply Connector: 2.1mm Straight Barrel Plug (2)
Pedal Connector: Jack for 2.1mm Plug
Polarity: Standard (Center Negative)
Length: 4'' / 10 cm
|
| VLPPBAR |
VooDoo Lab 5.5mm x 2.1mm Barrel Connector C- S to S 18'' |
|
2.1mm Straight Barrel Cable
The most widely used cable with 2.1mm straight barrel connector on each end and standard (center negative) polarity.
Used with a majority of popular pedal brands including Boss, MXR/Dunlop, TC Electronic Nova, Line 6 ToneCore, Ibanez and more.
Power Supply Connector: 2.1mm Straight Barrel Plug
Pedal Connector: 2.1mm Straight Barrel Plug
Polarity: Standard (Center Negative)
Length: 18'' / 46 cm
|
| VLPPBAR-R |
Voodoo Lab RP 2.1mm x 2.1mm Barrel Connector C- |
| VLPPBAR-R24 |
Voodoo Lab RP 2.1mm x 2.1mm Barrel Connector C- 24" |
| VLPPBAR-R36 |
Voodoo Lab RP 2.1mm x 2.1mm Barrel Connector C- 36" |
|

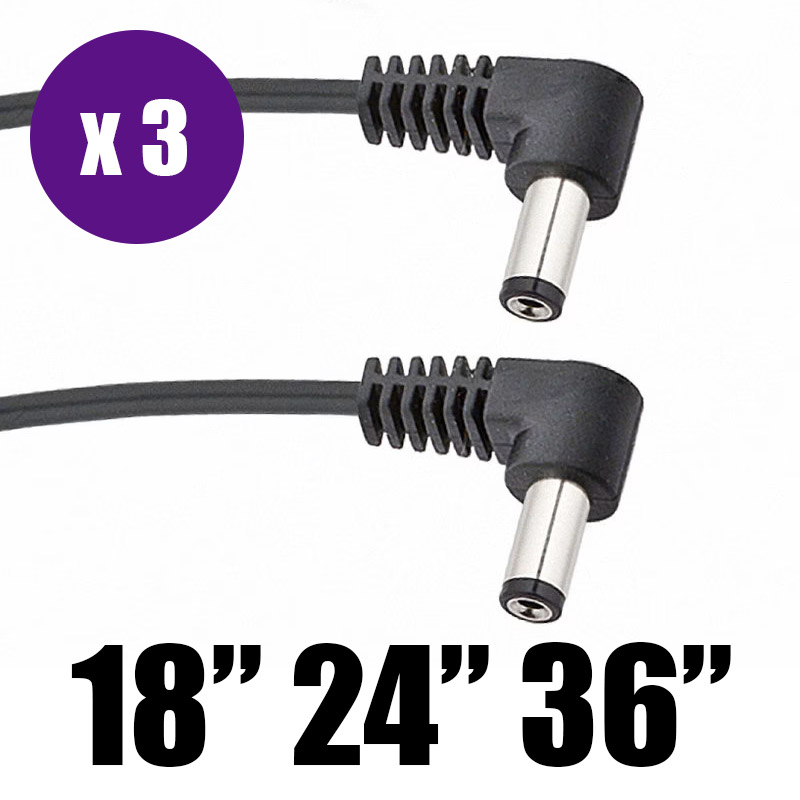

2.1mm x 2.1mm Standard Center Negative (right-angle)
This is the most common plug type found on Boss, most Ibanez, most Dunlop, MXR (new Dunlop-era),
Line 6 ToneCore (not digital modelers), current Voodoo Lab effects,
Prescription, most Fulltone, new DOD, Danelectro, Maxon, Morley, Guyatone, and many more.
Available in 18", 24" and 36"
|
| VLPPBAR-RS |
Voodoo Lab SP 2.1mm x 2.1mm barrel connector C- |
| VLPPBAR-RS24 |
Voodoo Lab SP 2.1mm x 2.1mm barrel connector C- 24" |
| VLPPBAR-RS36 |
Voodoo Lab SP 2.1mm x 2.1mm barrel connector C- 36" |
|

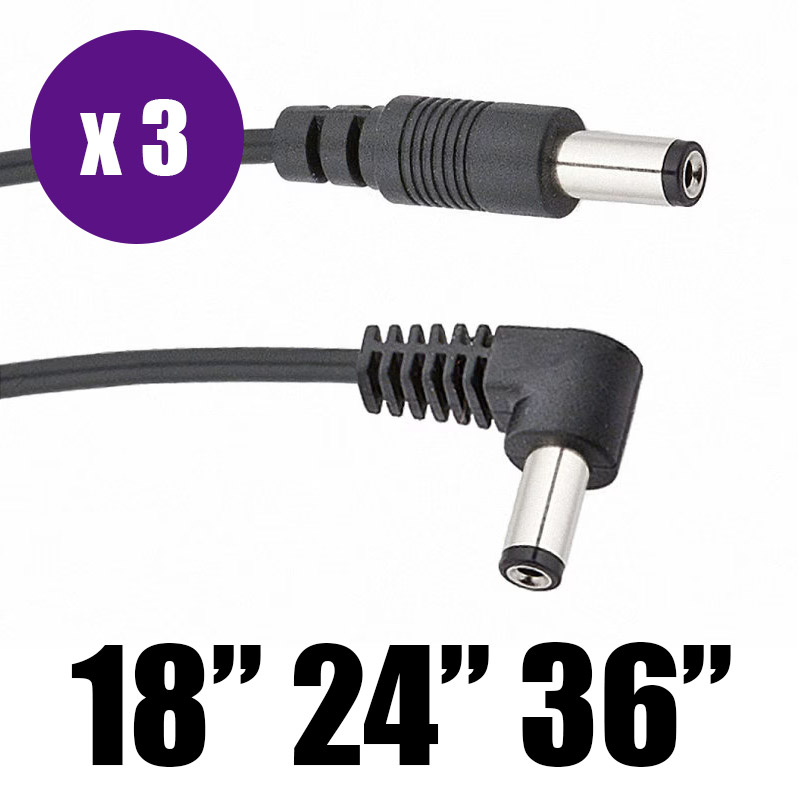

2.1mm x 2.1mm Standard Center Negative (straight)
This is the most common plug type found on Boss, most Ibanez, most Dunlop, MXR (newer Dunlop-era),
Line 6 ToneCore (not digital modelers), current Voodoo Lab effects, Prescription, most Fulltone,
new DOD, Danelectro, Maxon, Morley, Guyatone, and many more.
Available in 18", 24" and 36"
|
| VLPPBAT |
Voodoo Lab Battery Snap |
|
9V Battery Snap (straight)
Allows you to power your 9V battery effects that don’t have an external power jack.
Great for powering vintage effects that you don’t want to modify like a Fuzz Face or Cry Baby wah.
Works with any effect that runs on 9V including Z-Vex, older Ibanez, MXR, and more.
Approx 52.5 cm long
|
| VLPPEH24 |
Voodoo Lab SP 18v/24v 2.1mm x 2.5mm Reverse Polarity |
|
18v/24v 2.1mm x 2.5mm - Reverse Polarity (straight)
Combines two Pedal Power outputs (both in 12V mode) to create 24V.
Used to power various Electro-Harmonix effects like the Deluxe Memory Man, Stereo Memory Man,
Deluxe Electric Mistress, Micro Synthesizer, Bass Micro Synthesizer, Q-tron, Q-tron +, Stereo Polychorus, and Worm pedals.
(Also powers the Flanger Hoax which uses this reverse polarity cable, but only requires 18V
(set both Pedal Power outs to standard 9V.)
Approx 50 cm long
|
| VLPPL6 |
Voodoo Lab 2.1mm x 2.5mm barrel connector C+ |
|
2.1mm x 2.5mm “Red” Barrel (straight)
Designed to power the Line 6 DL4, MM4, FM4, DM4, and AM4 digital modeling pedals which require a reverse polarity cable,
and a 2.1mm x 2.5mm end.
Also Suitable to power the Hughes & Kettner Tube Factor, Tube Rotoshpere MKII, Replex, or Tubeman pedals which require a 2.1mm x 2.5mm end.
Approx 50 cm long
|
| VLPPL6-R |
Voodoo Lab RP 2.1mm x 2.5mm barrel connector C+ |
|
2.1mm x 2.5mm “Red” Barrel (right-angle)
Designed to power the Line 6 DL4, MM4, FM4, DM4, and AM4 digital modeling pedals which require
a reverse polarity cable, and a 5.5mm x 2.5mm end.
Also suitable to power the Hughes & Kettner Tube Factor, Tube Rotoshpere MKII, Replex, or Tubeman pedals which require a 2.1mm x 2.5mm end
Approx 50 cm long
|
| VLPPMIN |
Voodoo Lab SP 3.5mm Mini Plug |
|
3.5mm - 1/8” Mini Plug (straight)
This plug is commonly found on most older/vintage MXR, DOD, Electro-Harmonix,
Pro-Co (Rat series), Klon Centaur, and (non-LED) Voodoo Lab pedals.
Approx 52.5 cm long
|
| VLPPMIN-R |
Voodoo Lab RA 3.5mm Mini Plug |
|
3.5mm - 1/8” Mini Plug (right-angle)
This plug is commonly found on most older/vintage MXR, DOD, Electro-Harmonix,
Pro-Co (Rat series), Klon Centaur, and (non-LED) Voodoo Lab pedals.
Approx 50 cm long
|
| VLPPPK |
Voodoo Lab Cable Pack for Pedal power 2 |
|

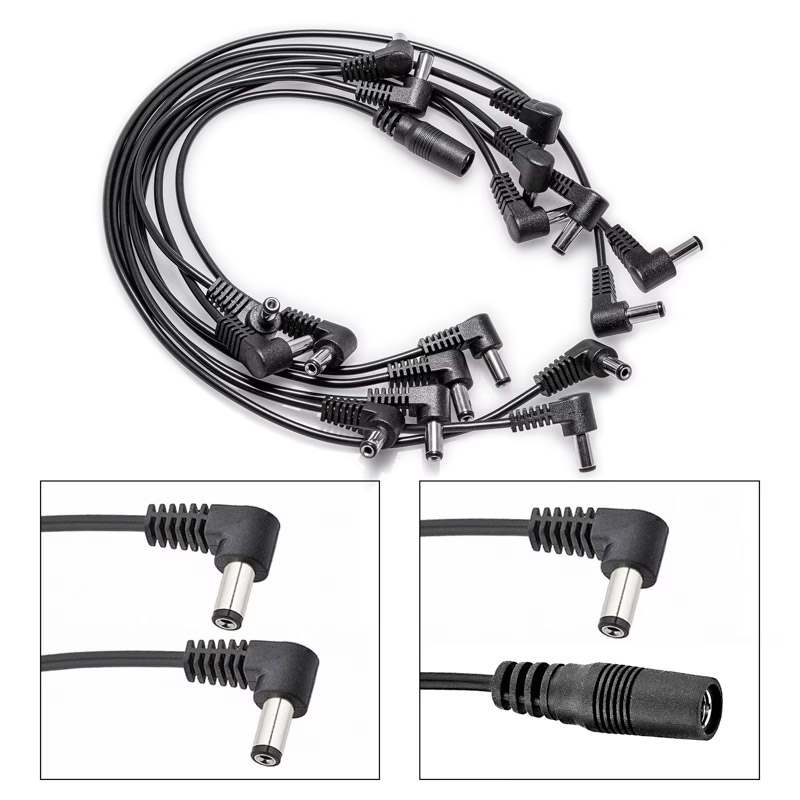

Pedal Power 2+ Standard Replacement Cable Pack
Eleven (11) of the most commonly used cables with the Pedal Power 2+.

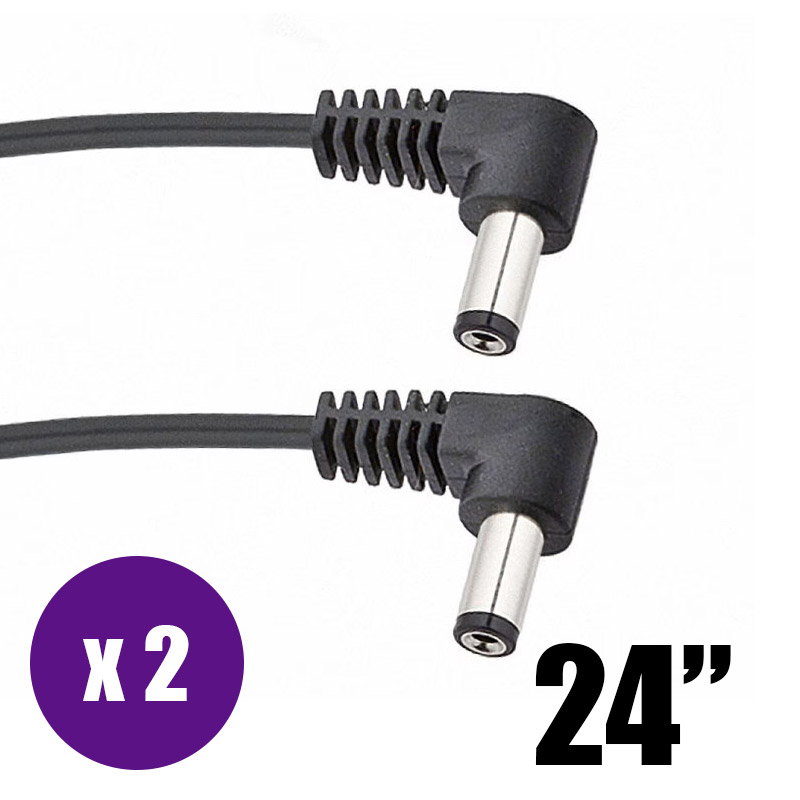

Part # VLPPBAR-R - Six cables with 2.1mm right angle barrel center negative plugs - 18''/46 cm

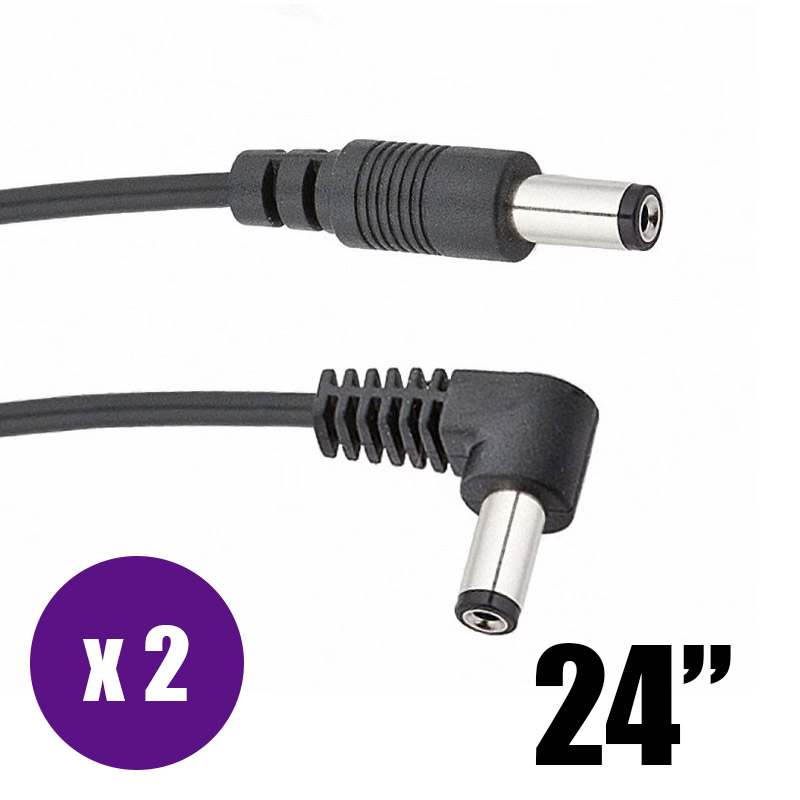

Part # VLPPBAR-RS24 - Two cables with 2.1mm straight & right angle barrel center negative plugs - 24''/61 cm
Part # VLPPL6-R - One cable with 2.1 mm right angle barrel plug and a 2.5mm right angle barrel center positive plug - 18''/46 cm
Part # VLPPMIN-R - One cable with a 3.5mm right angle mini tip positive plug and a 2.1 mm right angel barrel plug - 18''/46 cm
Part # VLPPBAT- One cable with battery snap and a 2.1mm right angle barrel center negative plug - 18''/46 cm
|
| VLPPREV |
Voodoo Lab SP 2.1mm x 2.1mm Barrel Connector C+ |
|
2.1mm x 2.1mm “White” Barrel – Reverse Polarity (straight)
Designed for reverse polarity powered units like the JangleBox, Fulltone SoulBender, '69,
and Octafuzz. Also powers the Moogerfooger MF-101 Lowpass Filter, MF-102 Ring Modulator,
MF-103 Phaser, and DMC/Voodoo Lab Cab-Tone.
Approx 52.5 cm long
|
| VLPPREV-R |
Voodoo Lab RP 2.1mm x 2.1mm Barrel Connector C+ |
|
2.1mm x 2.1mm “White” Barrel – Reverse Polarity (right-angle)
2.1mm x 2.1mm “White” Barrel – Reverse Polarity (right-angle) Designed for reverse polarity powered units
like the JangleBox, Fulltone SoulBender, '69, and Octafuzz.
Approx 50 cm long
|
| VLPPY |
Voodoo Lab SP 18v/24v 2.1mm x 2.1mm |
|
18v/24v 2.1mm x 2.1mm (straight)
Combines two Pedal Power outputs (both in standard 9V mode) to create 18V.
Great for powering pedals like the MXR Flanger and Dime Distortion, Crybaby 535Q, and various Fulltone and Keeley products.
Approx 50 cm long
|
| VLSPA36 |
Voodoo Lab 2.5mm Cable with no end plug |
|
PPAC Only - 2.5mm “Red” Barrel With No End Plug (straight)
This cable is bare on the end and has one straight 5.5mm x 2.5mm plug to connect to the Pedal Power AC.
Use this to make your own longer length or custom cables!
(Soldering required.)
Approx 90 cm Long
|
| VLSPP36 |
Voodoo Lab 2.1mm Cable with no end plug |
|
|
2.1mm Cable With No End Plug (straight)
This cable is bare on the end and has one straight 5.5mm x 2.1mm plug to connect to the Pedal Power.
Use this to make your own longer length or custom cables!
(Soldering required.)
Approx 90 cm Long
|
