Schatten Design Preamps
 Product Code  Description

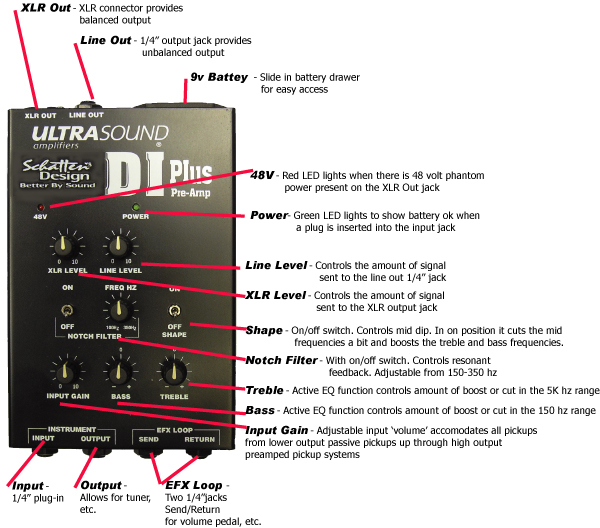

SDDIPA Schatten DI+ Preamp (Single Channel) Outboard

Preamp-DI Plus is a very powerful tool for any musician. It is not only a DI but a full featured preamp designed after Ultrasound's famous AG-series amps.
Whether at a local open mic night or at a major concert venue, you will be able to dial in a clear natural acoustic sound and route it to the stage PA through a balanced XLR output.
Sound engineers will appreciate the versatile controls and the optional 48-volt phantom power operation. Therefore, no more wall warts or batteries if your mixer has phantom power.


SDDIPAM Schatten Schatten PDI Preamp Max (Two Channel) Outboard

New Preamp-DI MAX is the most versatile instrument pre-amp on the market. With 2 independent channels, the DI MAX can be used as a blender as well as a pre-amp.
The Channel-1 input will accept mono as well as stereo (TRS) inputs which allows the DI MAX to process the tip signal through the Channel-1 controls and the ring signal through the Channel-2 controls giving you an enormous amount of flexibility for creative signal blending from your stereo pickups. Of course you can plug 2 different instruments into the DI MAX and blend the signals. Channel-1 also allows the use of an XLR input so you can use the DI MAX as a personal mic pre-amp.

The DI MAX lets you dial in a clear, natural sound and route it to a stage PA from a balanced XLR output. A Line out sends the signal to your stage amp.
Tone controls include :
active bass and treble EQ,
mid-dip shape control,
and phase switch.
Operates on :
48V phantom power,
9V adapter,
or 9V battery.

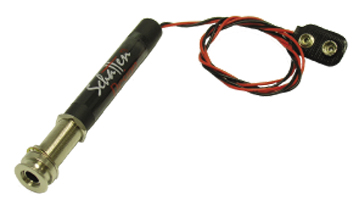

SDAPA Schatten Artist 2 Endpin Jack Preamp
SDAPA1 Schatten Artist 2 Endpin Jack Preamp + Volume Control
SDAPA2 Schatten Artist 2 Endpin Jack Preamp + 2 Volume Controls
Artist II Preamp
with multi power capability
(runs with or without a battery onboard)





Available Thumbwheel
Volume Controls
(mount near the lip of the soundhole securely with 3M VHB foam tape)

New Schatten Artist II Endpin Jack Preamp with Phantom Power Capability

We are pleased to announce the release of our new and upgraded Artist II model endpin jack preamp. This is the same preamp that is now supplied with our HFN series of guitar pickups, RG03A resonator pickup, and TCA tricone pickup.

The preamp is now capable of running from virtually any power source. It can be run from a 9 volt battery onboard the instrument or by any outboard power source between 11 and 48 volts such as Phantom Power as provided by a mixer, PA system, amp or outboard battery pack .....this multi power capability is not just an option, it comes as a standard feature.

So, the choice is yours: "Do I stick a battery in there.....or don't I?"
New 2 Channels
New Trim pots allow setting of maximum gain levels for each channel
New Gain variable from 0 db to 24 db
Better Battery life extended to approx. 800 hours if using a 9 volt battery
Fantastic Multi power capability - Preamp may be run from 9 volts onboard or from any Phantom Power source outside the instrument (up to 48 volts dc).
Option Thumbwheel volume controls
Option CAB-1 cable allows you to run from outboard power sources
Option RP-1 remote power module (18volts) allows you to run from an outboard power source when mixer/PA/amp Phantom Power is not available. (requires CAB-1 cable)

Having 2 separate channels on this preamp will allow you to mix and balance any of our piezo pickups with a mag pickup that you might already have.
Output of the Artist II preamp is mono.
This preamp also will match up well with virtually any other piezo crystal pickup from any manufacturer and as such is a good replacement preamp for other brands as well.

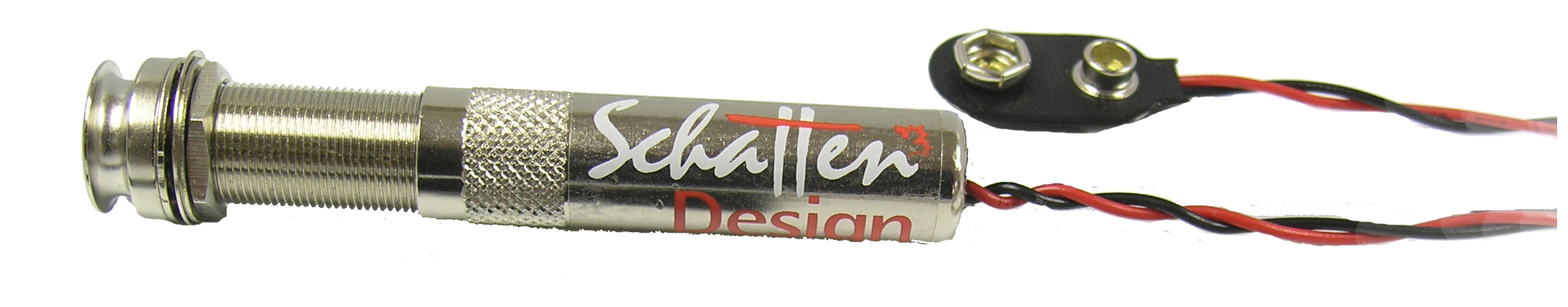

SDPLPA Schatten Design Endpin Jack Preamp (Single Channel)


The Player - Schatten has taken the best features of Schatten Designs renowned Artist II preamp and built them into our new Player Series Endpin Jack Preamps.
Features:
Single Channel Preamp
Clean, crisp sound amplification.
Even, flat response.
Long battery life (up to 2000 hours).
Trim pot on the circuit board for setting preamp gain from 0 to 20 db.

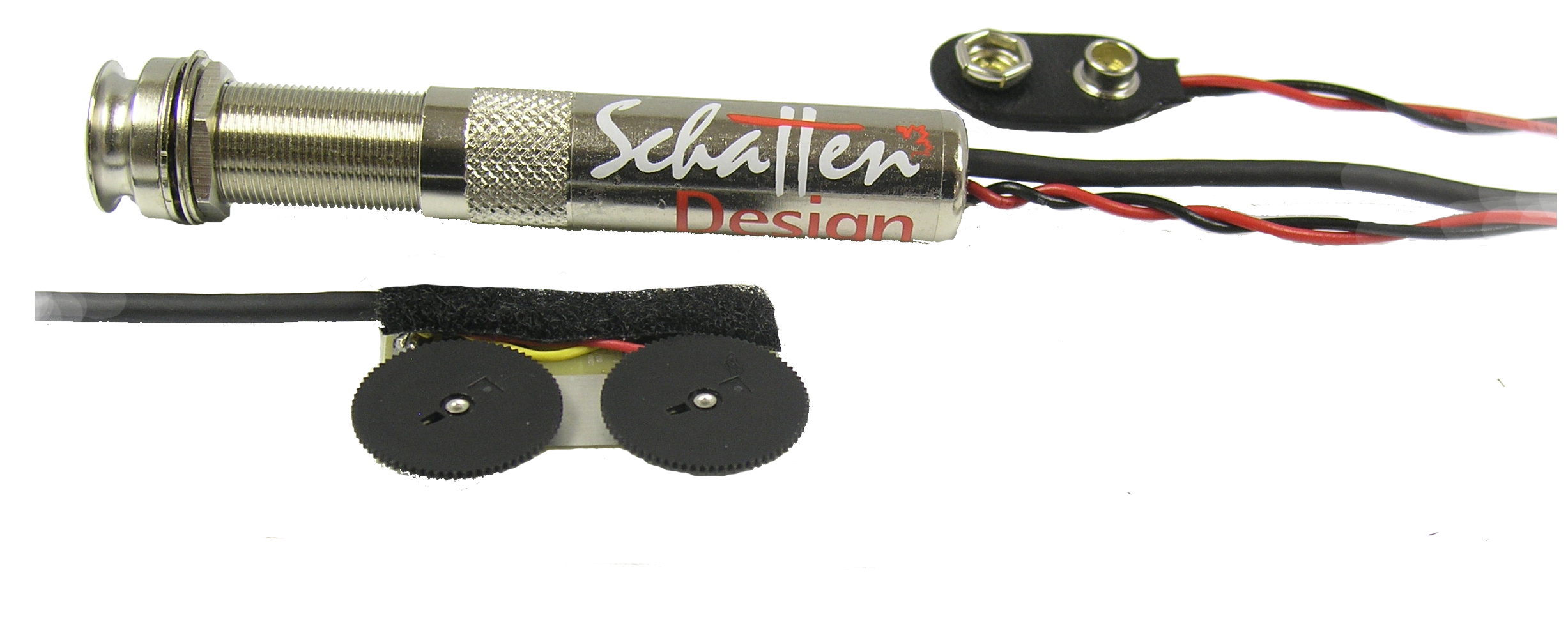

SDPLPA2 Schatten Design Player Endpin Jack Preamp with Volume and Tone Control


The Player - Schatten have taken the best features of Schatten Designs renowned Artist II preamp and built them into our new Player Series Endpin Jack Preamps.
Features:
Single Channel Preamp
Clean, crisp sound amplification.
Even, flat response.
Long battery life (up to 2000 hours).
Trim pot on the circuit board for setting preamp gain from 0 to 20 db.
Thumbwheel volume and tone controls on the Plus 2 model.

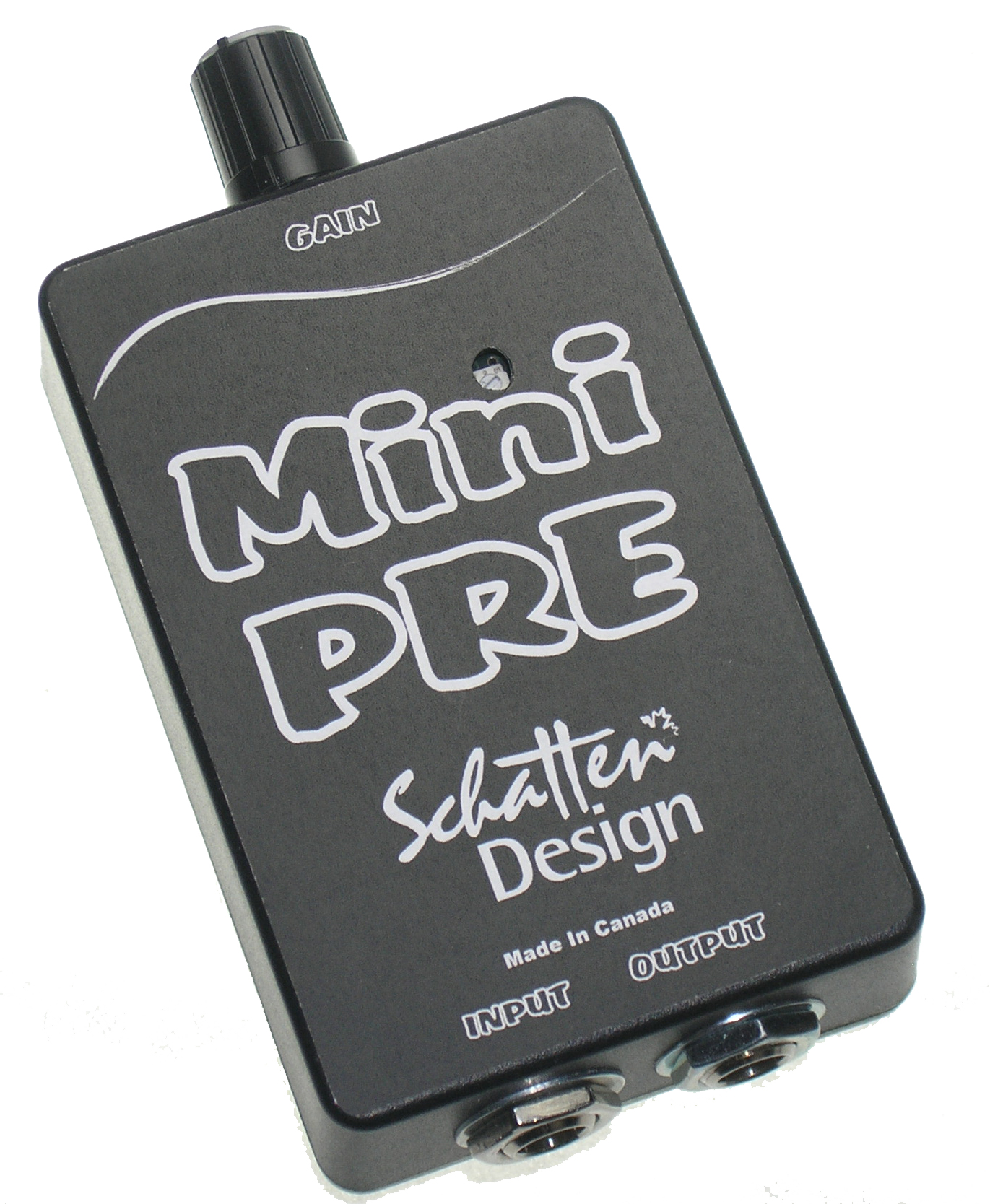

SDMINI-PRE Schatten Miniature Acoustic Instrument Preamp with Volume control and belt clipable


The Mini Pre's - Compact in size at only 1 inch thick, 2 inches wide, and a touch over 3 inches in length (25mm x 50mm x 80mm).
Weight is 4.5 ozs. (125 grams) with a battery. Simple - Schatten Design kept things simple. When you're on stage there's a limit to the amount of stuff that you really want to have to deal with.
The Mini Pre a volume control for its single channel
Solid - Tough enough to take years of stage abuse. The Mini Pre's are built into a rugged ABS box that is more than tough enough to stand on. Made in Canada.
Hang It Where You Want - The Mini Pre comes complete with a sturdy belt clip that installs on the preamp in a minute, so you may use to clip the preamp to your belt or strap.
Features:

* Clean, crisp sound amplification. * Even, flat response. * 9 volt battery powered with long battery life.

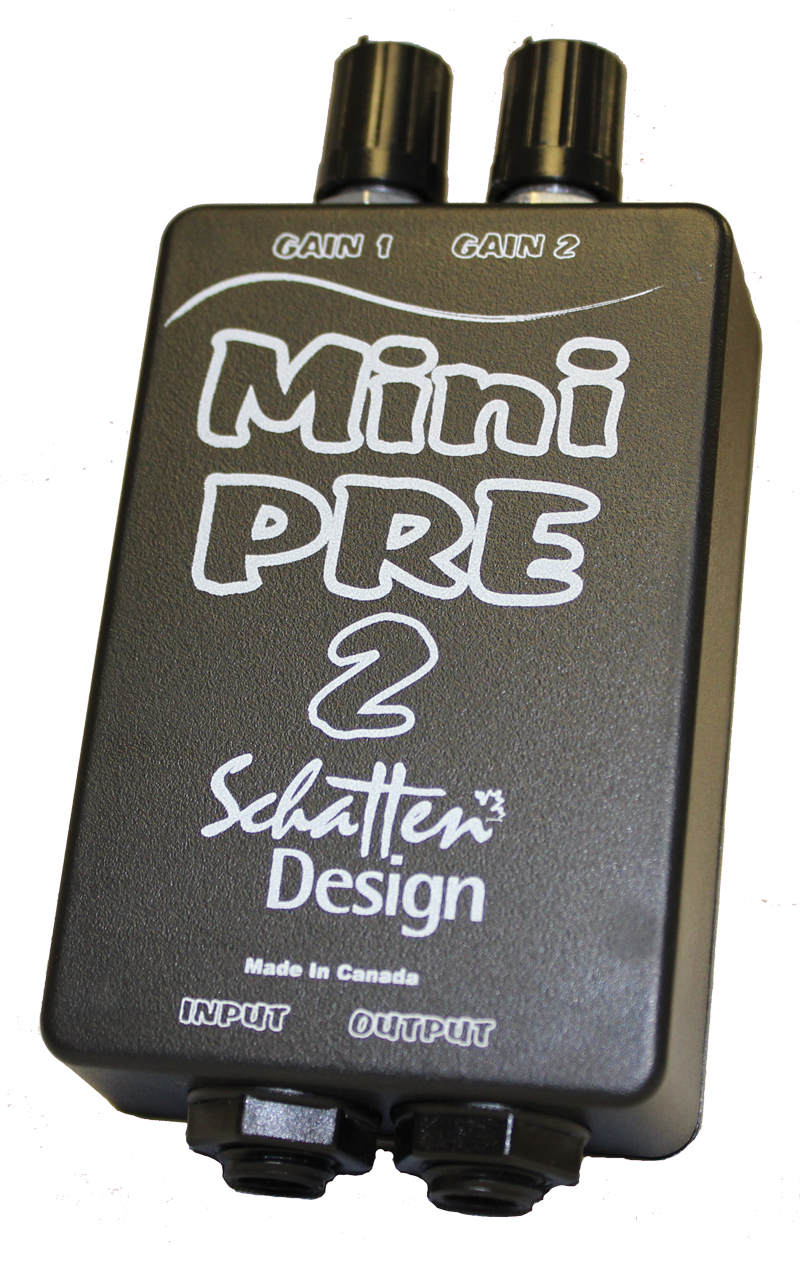

SDMINI-PRE2 Schatten Miniature Acoustic Instrument Preamp with Volume control and belt clipable With 2 Channels configurable for 2 Pickups or 1 pickup and 1 Mic


The Mini Pre's - Compact in size at only 1 inch thick, 2 inches wide, and a touch over 3 inches in length (25mm x 50mm x 80mm).
Weight is 4.5 ozs. (125 grams) with a battery. Simple - Schatten Design kept things simple. When you're on stage there's a limit to the amount of stuff that you really want to have to deal with.
The Mini Pre 2 has 2 volume controls (one for each of its channels), and that's it.
Solid - Tough enough to take years of stage abuse. The Mini Pre's are built into a rugged ABS box that is more than tough enough to stand on. Made in Canada.
Hang It Where You Want - The Mini Pre comes complete with a sturdy belt clip that installs on the preamp in a minute, so you may use to clip the preamp to your belt or strap.
Unique - Channel one is configured for the preamping of a pickup.
Channel two, with the use of an on-board switch, may be used for a condenser mic or a pickup.
In condender mic mode it will provide up to 9 volts d.c. to the mic and preamp at the same time

Features:

* Clean, crisp sound amplification. * Even, flat response. * 9 volt battery powered with long battery life.
